RAPID MIXER GRANULATOR (RMG)

  • RAPID MIXER GRANULATOR

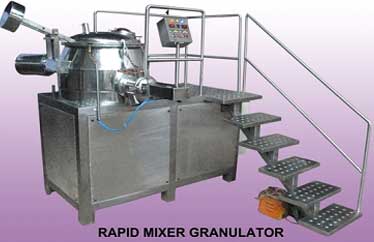

    RAPID MIXER GRANULATOR
    RAPID MIXER GRANULATOR OPERATIONS
    Rapid Mixer Granulator is designed to meet special needs of tablet manufacturing technology. This is achieved by tumbling dispensation time, more homogenous mixing, reliability of Granule size and above all maintaining improved hygiene compliant to GMP model.

    MIXING BOWL OF RAPID MIXER GRANULATOR

    • Inclination of the mixing blades accelerates rising and tumbling motion of the product in the bowl.
    • Dome shaped processing bowl which directs loose particles into whirling motion with the help of impeller.
    • For easy accessibility in cleaning the side discharge assembly is provided with hinges IN Rapid Mixer Granulator.
    • Impeller consists of 2 full and 2 half solid mixing blades.
    • Specially designed chopper blades driven at high speed gives fast and even granulation, throughout the whole mass in the product bowl.

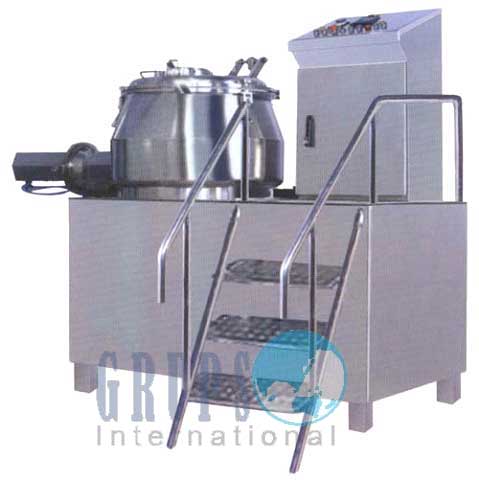

    RAPID MIXER GRANULATOR

    RAPID MIXER GRANULATOR TECHNICAL SPECIFICATION:


    Model Working Volume Gear Box Ratio Main Motor HP(1500/750 RPM) Chopper Motor HP(1500/3000 RPM) Discharge ht.
      Ltrs Kgs
    GI 25 25 5-7-.5 4" 3/5 1.5/2 600
    GI50 50 25 4" 3/5 1.5/2 600
    GI 100 80 40 7.5:1 7.5/10 2/3 700
    GI 150 120 60 7.5:1 10/15 3/5 780
    GI 250 200 100 10:1 22.5/30 3/5 1055
    GI 300 240 120 10:1 22.7/30 3/5 1200
    GI 400 320 160 10:1 35/40 5/7.5 1200
    GI 600 480 240 10:1 40/50 5/7.5 1200
    GI 800 640 320 15:1 50/60 5/7.5 1200
    GI1000 800 400 15:1 63/85 10/15 1200
    GI 1200 1000 500 15:1 80/100 10/15 1200

    RAPID MIXER GRANULATOR TECHNICAL DATA

    Model GI-10 GI-25 GI-50 GI-100 GI-150 GI-250 GI-400 GI-600 GI-1000
    Gross Volume In 10 25 50 100 150 250 400 600 1000
    Working
    Volume in litres    		 8 20 -10 80 120 200 320 480 800
    Main Motor
    In HP    		 2/3 3/5 3/5 7.5/10 10/15 20/30 30/40 40/50 63/85
    RPM Dual
    speed    		 750 /1500 750 /1500 750 /1500 750 /1500 750 /1500 750 /1500 750 /1500 750/ 1500 750/ 1500
    Mixing speed 75/150 75/150 75/150 75/150 75/150 75/150 75 / 150 75 / 150 75 / 150
    Chopper motor 1/1.5 1/2 2/3 2/3 3/5 3/5 5/7.5 5/7.5 10 / 15
    RPM Dual speed 1440 /2880 1440 /2880 1440 /2880 1440 /2880 1440 /2880 1440 /2880 1440 /2880 1440 / 2880 1440 / 2880
    Weight In Kgs. 200 900 1000 1400 1500 1800 2000 2500 3500

    OVERALL DIMENSIONS
    Length 1450 1440 1700 2350 2400 2550 2880 3100 3300
    Width 600 1000 750 1100 1430 2350 2450 2690 3150
    Height 950 1310 1400 1750 2185 2050 2275 2510 3035
    H -1 1060 1345 1600 1900 2280 2585 2960 3250 3765
