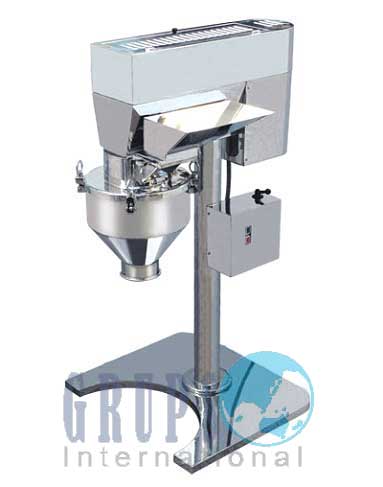

MULTI MILL

  • MULTI MILL
    Multi Mill Uses
    Multi mill machines are widely used for wet and dry granulation, pulverization etc. These machines find application in pharmaceutical, chemical, bulk drug, cosmetic, dyestuffs and food processing industries. The unit consists of vibro sifter, tablet coating pan, spray coating machine and dust extractor. Our multi mill machines can be modified based on the specific requirements of the clients.


    Salient Features of Multi mill:

    • Castors are provided for mobility of the Multi mill

    • Multi mill all contact parts SS 304/ SS 316
    • Multi mill direction of beaters can be changed by reversible switch from knife to impact toward and vice versa
    • Flame proof electrical can be provided at extra cost
    • Beaters and scraper blades are hardened and hard chrome plated
    • All contact parts of Multi mill can be easily and quickly dismantled for cleaning
    • Multi mill machine is designed for continuous operation


    Multi mill Salient Features:

    • Multi mill beaters & scraper blades made of SS 304 (SS 316 Optional)
    • Multi mill designed for continuous wet or dry granulation.
    • Castor wheels provided for mobility in Multi mill.
    • Flameproof electrical components can be provided at extra cwt in Multi mill.
    • Multi mill beater drive equipped with reversible switch.
    • Multi mill easy to dismantle and clean.


    Operation of Multi mill
    The material fed in the hopper enters into the processing chamber where it moves to the pantry and passes through screen.

    SS beaters having knife and impact edges rotate within a selected screen.
      • size of screen
      • shapes of beaters (Knife/ impact edge)
      • speed

    Multi mill Applications
    • Chemicals
    • Pharmaceuticals
    • Ceramics
    • Food Products
    • Dyestuff
    • Colors
    • Cosmetics
    • Pesticides
    • Spices
    • Fertilizers
    • Plastics
    • Bakeries
    • Resins
    • Insecticides, Etc

    Multi mill Technical Condition
    Output Reduction 50 Kg to 200 Kg per hour depending on the product and size required
    Beater 12 nos. with knife and impact edges & 2 scraper blades
    Screen size: (I) Perforated 0.5 to 25 mm
    (II) Wire mesh 4 to 100 mesh
    Dimensions (mm) 1230 (L) x 760 (W) x 1700 (H1)
    Screen Area (mm) 495 x 135 (66825 sq. mm)
    Motor 3 hp, 2800 RPM, 415 V, 50Hz, 3 PH, AC
    Rotor Speed 750, 1500, 2300, 3000 RPM
    Rotor Assy. Dia 250 mm
    Net Weight (Kg) 250 Kg

    MULTI MILL TECHNICAL SPECIFICATIONS
    Material Charging Height 1445 mm (Approx)
    Beaters 12 knife & impact edges & 2 Scrapper Blades
    Rotor Speed 750/1500/2300/3000 R.P.M.
    Rotor Assembly Dia 250 (Approx)
    Out put 50 kgs To 200 kgs/ Hour.
    Model ACRA-MM-200
    Motor 3.0 HP, 1440 RPM, 440 V 50Hz, 3 Phase
    Starter "DOL" with reversible switch
    Screen Dimensions INNER DIAMETER – 260 mm HT- 135mm
    Net Weight 275 KGS (Approx)
    Overall Dimensions (mm) 870 x 965 x 1630 mm (H)
    Case Dimensions (mm) 1200 mm X 1250 mm X 1860 mm (ht)
    Gross Weight 425 KGS (Approx)

    Multi mill Practical Specification :
    Model ACME-MM-200
    Output 50 to 200 Kgs. / Hr.
    Motor 3 Hp / 1440 RPM
    Beaters 12 Nos. with knife and impact edges and 2 nos. scraper blades
    Rotor Assembly Diameter 250 mm Approx.
    Rotor Speed 750 / 1500 / 2300 / 3000 RPM
    Screen Dimension Inner Diameter 265 mm / Height 140 mm
    Material Charging Height 1460 ± 5 mm
    Starter "DOL" with reversible switch
    Material Discharging Height 760 ± 5 mm
