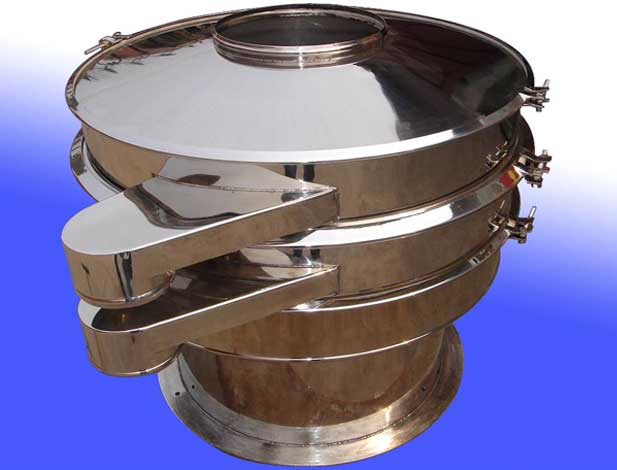

VIBRO SHIFTER

  • VIBRO SHIFTER
    • Vibro shifter Procedure
      Vibro shifters, also known as safety screeners, vibrating shifters, vibro sieves, check screeners or control sieves, are used to ensure the correct product quality of powders or liquids is achieved by removing oversize contamination. The Russell Compact Sieve® range of sifters are incredibly versatile and can be used for size based separation of almost any material. These vibrating shifters fit neatly into production lines, providing considerable screening capacity without requiring excessive headroom. Its innovative design means these machines are less than half the height of a traditional circular vibro shifter machine.

      Operating and cleaning is quick and easy in Vibro shifters, making this range of shifting machines perfect for all processing industries. A wide range of sizes and options means the machine can be tailored to suit your exact needs.Available with us are Vibro Shifter (Double Deck) machines that are designed to perfection and are in high demand in the global market. Fabricated from the best grades of raw material these are stringently checked for precision, quality and durability and operate on the principle of powder trembling and interacting.


    Vibro shifter Features :

    • Amplitude of vibratory motion adjustable through moveable eccentric weight.

    • SS 316 Hood with 200 mm dia Nozzle for dust charging of powders.
    • Vibro shifter can easily be dismantled cleaned & assembled through quick opening SS 316 clamps.
    • Vibro shifter are standard machine with TEFC motor flame proof / explosion proof motor material
    • Vibro shifter are provided with wide range of screen sizes 4-300 Mesh.
    • Vibro shifter are noiseless, maintenance free and high speeds.
    • Vibro shifter are available in various models providing screening diameter of 10, 22, 30, 47 , 55, 62, 75 etc
    • Vibro shifter Portable mounted on sturdy castor wheels. The vibrating assembly is isolated by rugged springs in Vibro shifter.
    • Vibro shifter are of CGMP Model with contact parts in SS 316 & Non Contact parts in SS 304.
    • Electrical requirement is less than other machines of a kind in the industries & Vibro shifter consume low energy as compared to reciprocating vibratory system.
    • Vibro shifter are provided with wide range of screen sizes 4-300 Mesh.
    Vibro shifter are portable and compact.


    TECHNICAL SPECIFICATION OF VIBRO SHIFTER:

    SIFTER 48” DIA 30” DIA 20” DIA 12” DIA
    Over all Dimensions 1350mm X 1350 mm X 1350 mm 900 X 900 X 1250 mm 600 X 750 X 1250 mm 350 X 450 X 1050 mm
    Power Supply 3 phase 440V A. C. 3 phase 440V A. C 3 phase 440V A. C

    3 phase 440V A.

    Utility Requirement Electricity 3 ph 50 Hz, 415 volts 3 ph 50 Hz, 415 volts 0.5 ph 50 Hz, 415 volts

    0.5 ph 50 Hz, 415 volts

    Speed ( R.P.M.) 1440 RPM 1440 RPM 1440 RPM

    1440 RPM

    Electrical Requirement 1.5 hp 0.5 hp 0.5 hp

    0.5 hp

    Top lid Provided Conical in shape with hopper Conical in shape with hopper Conical in shape with hopper

    Conical in shape with hopper

    Total Electrical Load 1.5 hp 0.5 hp 0.5 hp

    0.5 hp

    Clamps, Ring, Side Covers etc MOC SS 316 SS 316 SS 316 SS 316
    M. S. Parts Painted (only Motor Plate Will Be Painted. Painted (only Motor Plate Will Be Painted. Painted (only Motor Plate Will Be Painted. Painted (only Motor Plate Will Be Painted.
    Weight 280 Kgs 120 Kgs 90 Kgs 60 Kgs
    Surface Finish Inside outside Inside outside Inside outside Inside outside
    Gasket Teflon / Food Grade Neoprene Teflon / Food Grade Neoprene Teflon / Food Grade Neoprene Teflon / Food Grade Neoprene


    VIBRO SHIFTER COURSE OF ACTION


    The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a Faster rate.

    The bottom eccentric weight rotates below the centre of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turn over of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration.


    Applications of vibro shifter:




    Material

    Aperture Size



    Capacity

    Model


    µm

    Approx mesh count

    kg/hr

    lbs/hr



    Salt

    2000

    10

    70000

    154000

    C900

    Leaded Glaze

    112

    140

    8000

    18000

    C1200

    Flour

    850

    20

    18000

    40000

    C900

    Iron Powder

    315

    50

    60000

    132000

    C900

    Pharmaceutical Powder

    630

    32

    1000

    2200

    C600
